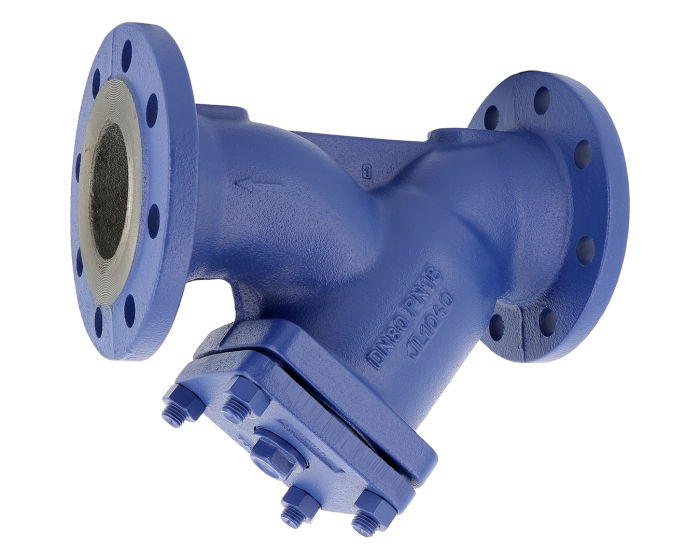

Cast iron Y-strainer 236 RF PN10/16 high temperature DN15

PN16 flanged cast-iron strainer for high temperature specifications Our reference 236 is a PN16 flanged strainer made in cast iron and designed to be used with high temperature specifications. With its CF8M stainless-steel body and its F304 stainless-steel screen, this model also benefits from a wide range of other technical characteristics, listed below: This strainer is available from DN15 to DN200 The flanges are RF PN10/16 up to DN150, and PN16 for DN200 The stainless-steel filter is removable The mesh is 1mm up to DN50, 1.25mm from DN65 to DN80, and 1.6mm up to DN200 The strainer can be mounted in horizontal or vertical position with descendant fluid, respecting the flow direction indicated by the arrow It has a bolted bonnet with a threaded BSP draining cap It is coated with blue RAL 5002 painting, 100 µm thickness It can be used with operating temperatures ranging from -10 °C to +300 °C The maximum pressure is 16 bar, and 10 bar with steam The PN16 flanged cast-iron strainer for high temperature specifications can be used with all common fluids, but is specifically indicated for steam systems.
